Band symmetry and topology

Since the theory behind SymmetricTightBinding.jl is anchored in symmetry analysis, the package naturally provides several tools to analyze band symmetry, as well as to use this information to apply the frameworks of topological quantum chemistry and symmetry indicators to analyze band topology.

To explore these tools, we first re-build the graphene model previously explored in the tutorial section, instantiating the variables tbm (model), ptbm (coefficient-parameterized model), kpi (interpolated k-path, via Brillouin.jl), and Es (band structure of ptbm, evaluated over kpi).

using Crystalline, SymmetricTightBinding
using Brillouin, GLMakie           # for k-space path and plotting
sgnum = 17                         # plane group p6mm
brs = calc_bandreps(sgnum, Val(2)) # band representations
cbr = @composite brs[5]            # (2b|A₁) EBR
tbm = tb_hamiltonian(cbr)          # tight-binding model (nearest neigbors)
ptbm = tbm([0, 1])                 # zero self-energy, nonzero nearest-neighbor hopping
Rs = directbasis(sgnum, Val(2))    # (conventional) direct lattice basis
kp = irrfbz_path(sgnum, Rs)        # high-symmetry k-path
kpi = interpolate(kp, 100)         # interpolated k-path
Es = spectrum(ptbm, kpi)           # band structure over `kpi`

Annotating little group irrep labels

To annotate a band structure plot with the little group irrep labels at high-symmetry k-points, we can use collect_irrep_annotations in combination with the annotations keyword argument of the Makie plot extension:

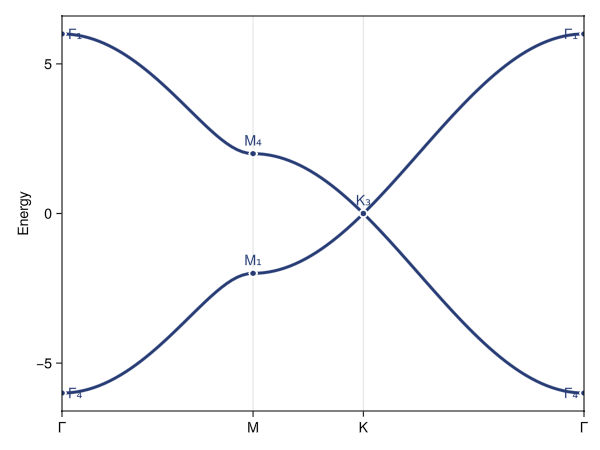

plot(kpi, Es; annotations = collect_irrep_annotations(ptbm))

Collecting compatibility respecting band groups

Similarly, we can analyze the compatibility respecting bands contained in ptbm via collect_compatible:

collect_compatible(ptbm)

1-element Vector{Crystalline.SymmetryVector{2}}:
 [M₁+M₄, Γ₁+Γ₄, K₃] (2 bands)

collect_compatible returns a list of symmetry vectors, from lowest-energy band grouping to highest, each aggregating the symmetry content of a minimal set of compatibility-respecting bands. Here, since our model contains only a single band representation – which is additionally an intrinsically connected one – such a list can have only one possible element: the only possible band groupings is the original band representation. We can verify this by comparing with the symmetry vector of the band representation used to build tbm:

SymmetryVector(CompositeBandRep(ptbm))

13-irrep Crystalline.SymmetryVector{2}:
 [M₁+M₄, Γ₁+Γ₄, K₃] (2 bands)

We can set up a more interesting situation by incorporating more band representations (i.e., more orbitals) into our model. E.g., below, we add three s-like orbitals placed at the 3c Wyckoff position (edges of the hexagonal unit cell; i.e., a kagome-like lattice) to the usual graphene model. First, we look at a situation without hybridization and with the bands of the two orbitals sets overlapping:

cbr′ = @composite brs[3] + brs[5] # (2a|A₁) + (3c|B₂)
tbm′ = tb_hamiltonian(cbr′)
ptbm′ = tbm′([2.5, 0, 0.2, 0, -1, 0])

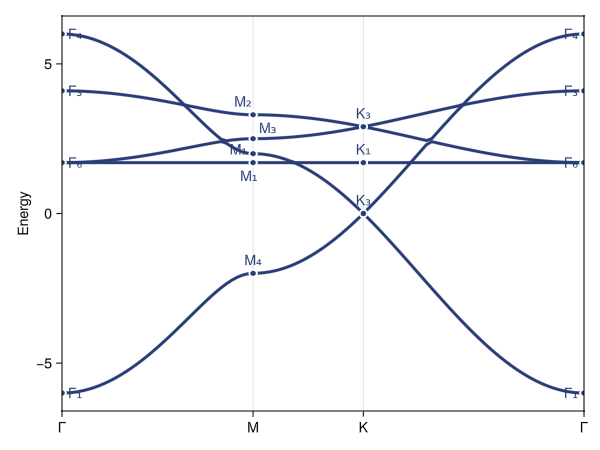

plot(kpi, spectrum(ptbm′, kpi); annotations = collect_irrep_annotations(ptbm′))

Next, we turn on hybridization (controlled by the fifth term of tbm′):

ptbm′′ = tbm′([2.5, 0, 0.2, 0, -1, .5])

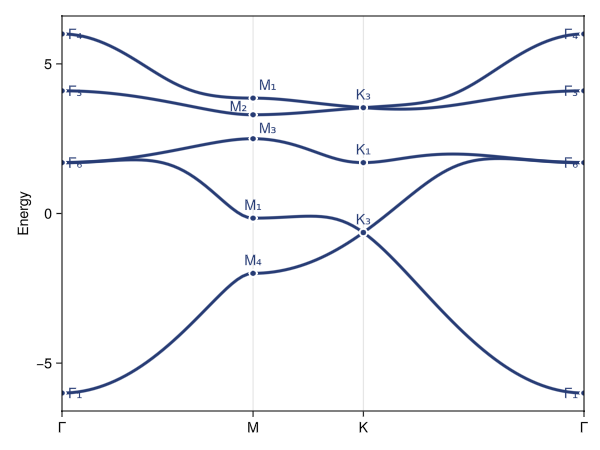

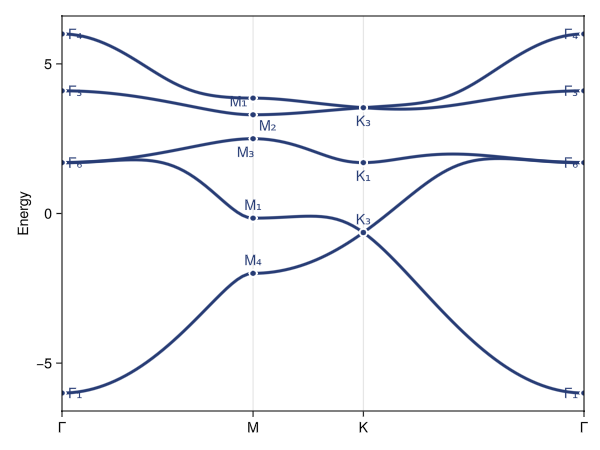

plot(kpi, spectrum(ptbm′′, kpi); annotations = collect_irrep_annotations(ptbm′′))

We can verify that neither of the band groupings in the hybridized band structure have the same content as either of the underlying band representations. In particular, the band symmetry content of the underlying band representations is:

SymmetryVector.([brs[3], brs[5]])

2-element Vector{Crystalline.SymmetryVector{2}}:
 [M₁+M₂+M₃, Γ₃+Γ₆, K₁+K₃] (3 bands)
 [M₁+M₄, Γ₁+Γ₄, K₃] (2 bands)

We can compare this against the band symmetry content of each of the hybridized bands is obtained from collect_compatible (using a compatibility analysis that involves only the high-symmetry k-points):

julia> ns = collect_compatible(ptbm′′)2-element Vector{Crystalline.SymmetryVector{2}}:
 [M₁+M₃+M₄, Γ₁+Γ₆, K₁+K₃] (3 bands)
 [M₁+M₂, Γ₃+Γ₄, K₃] (2 bands)

In the hybridized model above, the symmetry content of each band grouping differs from any of the original band representations used to build the model: in particular, the assignment of the Γ₃ and Γ₆ irreps and the M₂ and M₄ irreps are inverted.

Band topology

Using the extracted symmetry vectors, we can compute the associated symmetry-diagnosable band topology of each band grouping. We can obtain e.g., a coarse topological diagnosis of TRIVIAL (encompassing both trivial and fragile phases) and NONTRIVIAL using Crystalline.jl's calc_topology:

julia> calc_topology.(ns, Ref(brs))2-element Vector{Crystalline.TopologyKind}:
 TRIVIAL::TopologyKind = 0
 TRIVIAL::TopologyKind = 0

I.e., in this example, both band representations are either a trivial or a fragile phase. To resolve this distinction, we can use SymmetryBases.jl's calc_detailed_topology:

julia> using SymmetryBasesERROR: ArgumentError: Package SymmetryBases not found in current path.
- Run `import Pkg; Pkg.add("SymmetryBases")` to install the SymmetryBases package.
julia> calc_detailed_topology.(ns, Ref(brs))ERROR: UndefVarError: `calc_detailed_topology` not defined in `Main.var"Main"`
Suggestion: check for spelling errors or missing imports.
