Berry curvature and Chern numbers

SymmetricTightBinding.jl implements some functionalities to compute the Berry curvature and associated Chern numbers of parameterized tight-binding models via berrycurvature, chern, and chern_fukui. We illustrate the functionality here, with the canonical example of the Haldane model.

Haldane model

The Haldane model ^[1], featuring both an inversion-breaking mass term and a time-reversal breaking next-nearest-neighbor complex hopping, has p3 symmetry (plane group ⋕13). The model is built from two s-like orbitals (i.e., with site-symmetry irrep A) placed at the 1b and 1c Wyckoff positions.^[2]

using Crystalline, SymmetricTightBinding
sgnum = 13 # p3
brs = calc_bandreps(sgnum, Val(2); timereversal = false)
brs[4], brs[1] = brs[1], brs[4]; # see below
# (↑) We manually swap the positions of the (1b|A) and (1c|A) EBRs in `brs` above.
#     Without this adjustment, the model we construct below would place the 1b
#     position in the "second orbital slot" and the 1c position in the "first slot",
#     with the ordering being inherited from the sorting in `brs`. But Haldane places
#     the 1b position as the first orbital (A sites) and the 1c position as the
#     second orbital (B sites): aligning the two simply makes the comparison easier
cbr = @composite brs[1] + brs[4] # (1b|A) + (1c|A)

tbm = tb_hamiltonian(cbr, [[0,0], [0,1]])

8-term 2×2 TightBindingModel{2} over (1b|A)⊕(1c|A):
┌─
1. ⎡ 1  │  0 ⎤
│  ⎢ ───┼─── ⎥
│  ⎣ 0  │  0 ⎦
└─ (1b|A) self-term
┌─
2. ⎡ 𝕖(δ₁)+𝕖(δ₂)+𝕖(δ₃)+𝕖(δ₄)+𝕖(δ₅)+𝕖(δ₆)  │  0 ⎤
│  ⎢ ─────────────────────────────────────┼─── ⎥
│  ⎣ 0                                    │  0 ⎦
└─ (1b|A) self-term:  δ₁=[0,1/1], δ₂=[-1/1,-1/1], δ₃=[1/1,0], δ₄=-δ₁, δ₅=-δ₂, δ₆=-δ₃
┌─
3. ⎡ i𝕖(δ₁)+i𝕖(δ₂)+i𝕖(δ₃)-i𝕖(δ₄)-i𝕖(δ₅)-i𝕖(δ₆)  │  0 ⎤
│  ⎢ ───────────────────────────────────────────┼─── ⎥
│  ⎣ 0                                          │  0 ⎦
└─ (1b|A) self-term:  δ₁=[0,1/1], δ₂=[-1/1,-1/1], δ₃=[1/1,0], δ₄=-δ₁, δ₅=-δ₂, δ₆=-δ₃
┌─
4. ⎡ 0  │  0 ⎤
│  ⎢ ───┼─── ⎥
│  ⎣ 0  │  1 ⎦
└─ (1c|A) self-term
┌─
5. ⎡ 0  │  0                                   ⎤
│  ⎢ ───┼───────────────────────────────────── ⎥
│  ⎣ 0  │  𝕖(δ₁)+𝕖(δ₂)+𝕖(δ₃)+𝕖(δ₄)+𝕖(δ₅)+𝕖(δ₆) ⎦
└─ (1c|A) self-term:  δ₁=[0,1], δ₂=[-1,-1], δ₃=[1,0], δ₄=-δ₁, δ₅=-δ₂, δ₆=-δ₃
┌─
6. ⎡ 0  │  0                                         ⎤
│  ⎢ ───┼─────────────────────────────────────────── ⎥
│  ⎣ 0  │  i𝕖(δ₁)+i𝕖(δ₂)+i𝕖(δ₃)-i𝕖(δ₄)-i𝕖(δ₅)-i𝕖(δ₆) ⎦
└─ (1c|A) self-term:  δ₁=[0,1], δ₂=[-1,-1], δ₃=[1,0], δ₄=-δ₁, δ₅=-δ₂, δ₆=-δ₃
┌─
7. ⎡ 0                     │  𝕖(δ₁)+𝕖(δ₂)+𝕖(δ₃) ⎤
│  ⎢ ──────────────────────┼─────────────────── ⎥
│  ⎣ 𝕖(-δ₁)+𝕖(-δ₂)+𝕖(-δ₃)  │  0                 ⎦
└─ (1b|A)↔(1c|A):  δ₁=[1/3,-1/3], δ₂=[1/3,2/3], δ₃=[-2/3,-1/3]
┌─
8. ⎡ 0                         │  i𝕖(δ₁)+i𝕖(δ₂)+i𝕖(δ₃) ⎤
│  ⎢ ──────────────────────────┼────────────────────── ⎥
│  ⎣ -i𝕖(-δ₁)-i𝕖(-δ₂)-i𝕖(-δ₃)  │  0                    ⎦
└─ (1b|A)↔(1c|A):  δ₁=[1/3,-1/3], δ₂=[1/3,2/3], δ₃=[-2/3,-1/3]

The terms in tbm form a basis for many possible Hamiltonians, including for the Haldane model. By comparing term by term with Haldane's expressions, the correct parameterization can be determined to be:

haldane_model(t₁, m, t₂, ϕ) = tbm([m, t₂*cos(ϕ), t₂*sin(ϕ), -m, t₂*cos(ϕ), -t₂*sin(ϕ), t₁, 0])

haldane_model (generic function with 1 method)

This realizes the Haldane Hamiltonian with nearest-neighbor hopping $t_1$, a staggered mass term $m$, and a complex next-nearest-neighbor hopping $t_2 \exp(\pm\mathrm{i}\phi)$ with Haldane's zero-flux pattern. The model is gapless for $m/t_2 = 3\sqrt{3}|\sin\phi|$ and otherwise gapped when $|t_2 / t_1| < 1/3$.

The Berry curvature is nonzero at generic k-points and generic values of t₁, m, t₂, ϕ, as we can verify with the berrycurvature method:

ptbm = haldane_model(1.0, 0.1, 0.1, π/2)
berrycurvature(ptbm, [.2, .3], 1)

6.155322378740026

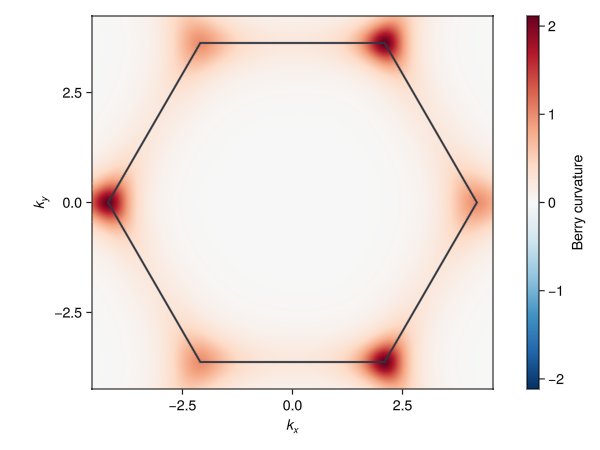

We can use this to e.g., visualize the Berry curvature distribution over the Brillouin zone:

# compute the Berry curvature over the parallelipiped Brillouin zone
Gs = dualbasis(directbasis(sgnum, Val(2)))
ks = range(-0.5, 0.5, 100) # coordinate range in reciprocal basis
k12s = (ReciprocalPoint(k1, k2) for k1 in ks, k2 in ks)
Ω = [berrycurvature(ptbm, k12, 1) for k12 in k12s] # Berry curvatures of first band

# use Brillouin.jl and GLMakie.jl to visualize the Berry curvature
using Brillouin, GLMakie
c = wignerseitz(Gs)

kxys = [cartesianize(k12, Gs) for k12 in k12s] # k-points in Cartesian coords
kxs = getindex.(kxys, 1)
kys = getindex.(kxys, 2)

f = Figure()
ax = Axis(f[1,1]; aspect=Makie.DataAspect())

Ωz = Ω ./ Crystalline.Bravais.volume(Gs) # transform from reduced to Cartesian setting
maxΩ = maximum(abs, Ωz)
colormap_kws = (; colormap = Reverse(:RdBu), colorrange=(-maxΩ, maxΩ))
for s1 in -1:1, s2 in -1:1 # map across adjacent parallelipiped BZs
    G = s1 * Gs[1] + s2 * Gs[2]
    kxys′ = kxys .+ Ref(G)
    surface!(ax, getindex.(kxys′, 1), getindex.(kxys′, 2), zeros(size(Ωz));
             color = Ωz, shading = NoShading, colormap_kws...)
end
plot!(c)
ax.limits = (-1.45π, 1.45π, -1.35π, 1.35π)
ax.xlabel = rich("k", subscript("x"); font=:italic)
ax.ylabel = rich("k", subscript("y"); font=:italic)

cb = Colorbar(f[1,2]; label="Berry curvature", colormap_kws...)
f

Of course, we can also compute the Chern number $C_n = \frac{\mathrm{i}}{2\pi} \int_{\text{BZ}} \nabla_{\mathbf{k}} \times \langle u_{n\mathbf{k}} | \nabla_{\mathbf{k}} | u_{n\mathbf{k}} \rangle \, \mathrm{d}^2 \mathbf{k}$ by integrating (i.e., summing up) the Berry curvature over the Brillouin zone. The convenience method chern does exactly this:

Nk = 21 # number of k-point samples per BZ direction
chern(ptbm, 1, Nk) # Chern number of first band

0.9999892090186546

Generally, however, it will be faster and more accurate to use the chern_fukui method, which uses the approach of Fukui et al. ^[3] to obtain a manifestly quantized Chern number:

chern_fukui(ptbm, 1, Nk)

1

The Fukui method is also applicable in non-Abelian settings, i.e., for degenerate band multiplets.

Phase diagrams

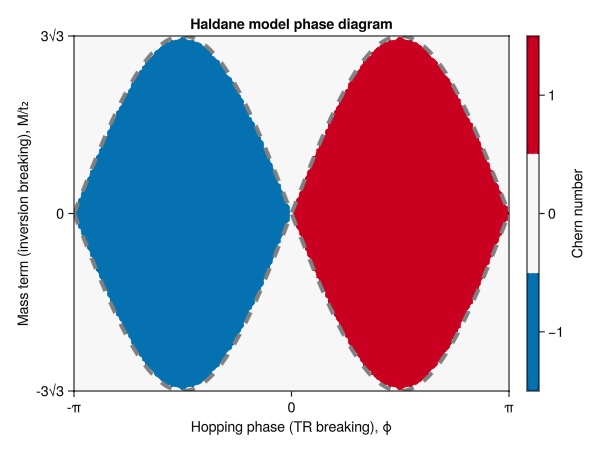

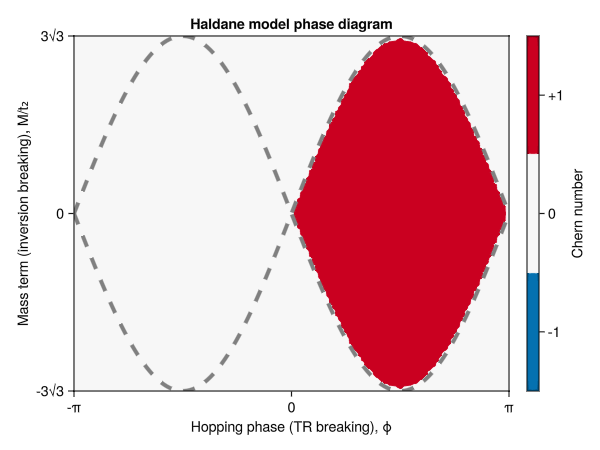

We can use e.g., the chern_fukui approach to reproduce the classical phase diagram of the Haldane model. In particular, we show below the Chern number of the Haldane model with $t_2 = t_1 / 5$ for varying $M / t_2$ and hopping phase $\phi$:

const t₁ = 1.0
const t₂ = t₁ / 5
haldane_model(m_div_t₂, ϕ) = haldane_model(t₁, m_div_t₂ * t₂, t₂, ϕ)

Nk = 21
N = 151
Mdivt2s = range(-3√3, 3√3, N)
ϕs = range(-π, π, N)
Cs = [SymmetricTightBinding.chern_fukui(haldane_model(Mdivt2, ϕ), 1, Nk) for ϕ in ϕs, Mdivt2 in Mdivt2s]

f, ax, p = contourf(ϕs, Mdivt2s, Cs; levels = -1:1:2, colormap=Reverse(:RdBu_5))
lines!(ϕs, 3√3*sin.(ϕs); color=:gray, linestyle=:dash, linewidth=4) # add analytical phase boundaries
lines!(ϕs, 3√3*sin.(.-ϕs); color=:gray, linestyle=:dash, linewidth=4)

ax.limits = (-π, π, -3√3, 3√3)
ax.xticks = ([-π, 0, π], ["-π", "0", "π"])
ax.yticks = ([-3√3, 0, 3√3], ["-3√3", "0", "3√3"])
ax.xlabel = "Hopping phase (TR breaking), ϕ"
ax.ylabel = "Mass term (inversion breaking), M/t₂"
ax.title = "Haldane model phase diagram"

cb = Colorbar(f[1,2], p)
cb.ticks = ([-1, 0, 1] .+ 1/2, ["-1", "0", "+1"])
cb.label = "Chern number"

f

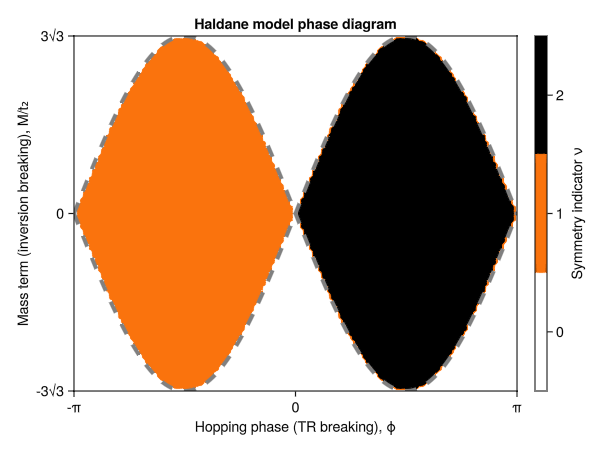

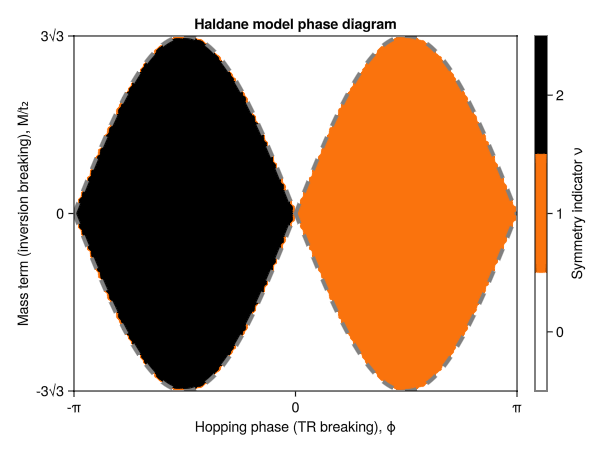

We could also have obtained a similar-looking phase diagram by using topological quantum chemistry:

νs = Matrix{Int}(undef, N, N)
F = smith(stack(brs)) # Smith decomposition of `brs`; precomputed for efficiency
for (i, ϕ) in enumerate(ϕs), (j, Mdivt2) in enumerate(Mdivt2s)
    ptbm = haldane_model(Mdivt2, ϕ)
    n = first(collect_compatible(ptbm)) # get first symmetry vector
    ν = only(symmetry_indicators(n, F))
    νs[i, j] = ν
end

f, ax, p = contourf(ϕs, Mdivt2s, νs; levels = 0:1:3, colormap=Reverse(:sunset))
lines!(ϕs, 3√3*sin.(ϕs); color=:gray, linestyle=:dash, linewidth=4) # add analytical phase boundaries
lines!(ϕs, 3√3*sin.(.-ϕs); color=:gray, linestyle=:dash, linewidth=4)

ax.limits = (-π, π, -3√3, 3√3)
ax.xticks = ([-π, 0, π], ["-π", "0", "π"])
ax.yticks = ([-3√3, 0, 3√3], ["-3√3", "0", "3√3"])
ax.xlabel = "Hopping phase (TR breaking), ϕ"
ax.ylabel = "Mass term (inversion breaking), M/t₂"
ax.title = "Haldane model phase diagram"

cb = Colorbar(f[1,2], p)
cb.ticks = ([0, 1, 2] .+ 1/2, ["0", "1", "2"])
cb.label = "Symmetry indicator ν"

f

Berry curvature in three-dimensional models

k3 = 0.1 # pick a k₃ plane
Nk = 101 # number of integration points
k12s = range(-0.5, 0.5, Nk+1)[2:end] # integration points in plane

# compute flux of Ω₃ through k₃ plane (for first band)
Φ = sum(berrycurvature(ptbm, [k1, k2, k3], 1)[3] for k1 in k12s, k2 in k12s; init=0.0) / Nk^2

# normalize by 2π to obtain associated Chern number
C₃ = Φ / (2π)
