Density of states

For Hermitian models, the density of states (DOS) of a parameterized tight-binding model can be computed via densityofstates. The DOS is evaluated with the generalized Gilat–Raubenheimer method ^[1] – meshing the Brillouin zone, linearizing each band within every mesh cell using its group velocity, and accumulating the analytic per-cell contributions – and is normalized per unit cell, so that its integral over all energies equals the number of bands $N_{\text{b}}$, i.e., $\int \mathrm{DOS}(E)\,\mathrm{d}E = N_{\text{b}}$. We illustrate the functionality with the example of graphene.

Graphene

We build the standard nearest-neighbor graphene model – the (2b|A₁) EBR of plane group p6mm (⋕17) – and evaluate its DOS over a uniform energy grid:

using Crystalline, SymmetricTightBinding

brs = calc_bandreps(17, Val(2))
cbr = @composite brs[5] # (2b|A₁), 2 bands
ptbm = tb_hamiltonian(cbr, [[0,0]])([0.0, 1.0]) # zero on-site energy, unit nearest-neighbor hopping

Es = range(-6.5, 6.5, 501)
dos = densityofstates(ptbm, Es; Nk = 200)

The result features the well-known graphene DOS hallmarks: a linear vanishing at the Dirac point ($E = 0$), logarithmic van Hove singularities at $E = \pm 2$, and the band edges at $E = \pm 6$.

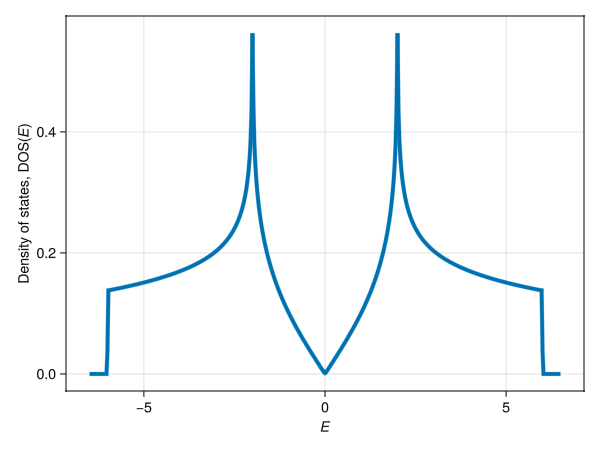

using GLMakie

axis = (; xlabel = rich("E", font=:italic), ylabel = "Density of states, DOS(" * rich("E", font=:italic) * ")")
lines(Es, dos; axis)

We can confirm the per-unit-cell normalization by evaluating the sum rule $\int \mathrm{DOS}(E)\,\mathrm{d}E = N_{\text{b}}$ (here, $N_{\text{b}} = 2$):

sum(dos) * step(Es)

2.0

Energy-scaling via transform

In some settings – e.g., photonic tight-binding models – the model eigenvalues $E$ represent a frequency-quantity $\omega^2$ rather than the energy itself. The transform keyword maps each eigenvalue $E$ to $transform(E)$ and applies the corresponding chain-rule rescaling of the group velocity, so that the eigenvalues are interpreted in the transformed setting. For instance, to obtain a DOS as a function of $\omega = \sqrt{E}$ for a model whose (nonnegative) eigenvalues $E$ represent $\omega^2$, we may simply pass transform = sqrt as a keyword argument.
